Excellent for the aspiration room
Exposure of human oocytes and/or embryos / blastocysts to
room air and to room temperature can drastically affect their

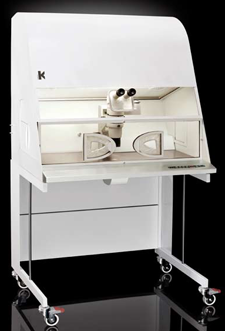

viability. The L323 IVF Incu-Chamber is developed as a semi-closed
system allowing you to perform oocyte screening, fertilization,
cleavage check and embryo/blastocyst transfer in an incubator like
environment.
The L323 IVF Incu-Chamber Standard Characteristics:
- Constant temperature at 37°C on the working procedure surface
- Warmed re-circulating air at 37°C
- Controlled CO2 air circulation in the procedure area (range
2-10%)
- Controlled O2 air circulation in the procedure area (range
2-20%)
- Up to 60 % Air Humidity in the procedure area
- Re-circulated air is HEPA, V.O.C filtered and passes through
a UV-Light pressure chamber to ensure that the air is
decontaminated.
Technical specifications: | L323 IVF
|
Overall dimensions (WxDxH) | 940x830x1720 mm/19x33x68
|
Workspace/tabletop (WxD) | 940x500 mm/19x20
|
Air flow | 0,40 m/s
|
Table height | 835 mm/33
|
